28-08-11: Stations removed

I have removed the stations and are removing all the small pieces of hot melt glue still sticking to the hull.

I have trimmed the edge off the glass fiber on the deck and placed the deck and hull together. It still fits fine. I tried to weigh the boat as it is now (still needing 2 layers of epoxy on the deck outside and glass fiber on the inside of both the deck and hull). At this stage the boat weigh 16.2 kg. I have no clue on how much the finished boat will weigh ?

27-08-11: Fiberglassing the deck / The skeg..

Today I pulled myself together and prepared to fiberglass the deck. I have been doing all kind of other things but getting to it. Today I got to it...

Done - and its looking good.. I used only about 300 gr. of epoxy for the deck.

I have figured out how to save my skeg from the garbage bin. I have glued two pieces of 4 mm birch plywood on the sides of the skeg. In this way the upper part of the skeg has enough thickness to accommodate the knots of the string and the elastic string.
This skeg is designed to be reparable from the outside. E.i. I can replace the elastic string an the string from the outside.

The elastic dstring pulls the skeg down and the string pulls the skeg up.

I still need to fit some plastic tubing for the string.

15-08-11: Sanding the epoxyed deck

I am now  sanding the deck and smoothing the terrible epoxy job I did earlier. Its very messy and noisy, but also satisfying to transform the deck from rough to smooth.

08-08-11: Fiberglassing the skeg

I have fiberglassed the skeg and placed it compressed between two pieces of foam. I worked out fine.

At this point I realize that the thickness of the skeg is too small to accommodate the  string for pulling up the skeg and the elastic ass well. The skeg is only about 4 mm thick and there is no room for the knots.

Back to the thinking box.....

07-08-11: Priming the deck with epoxy

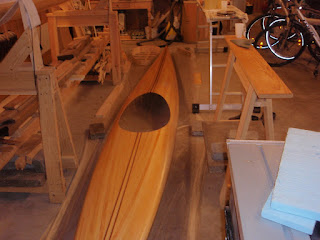

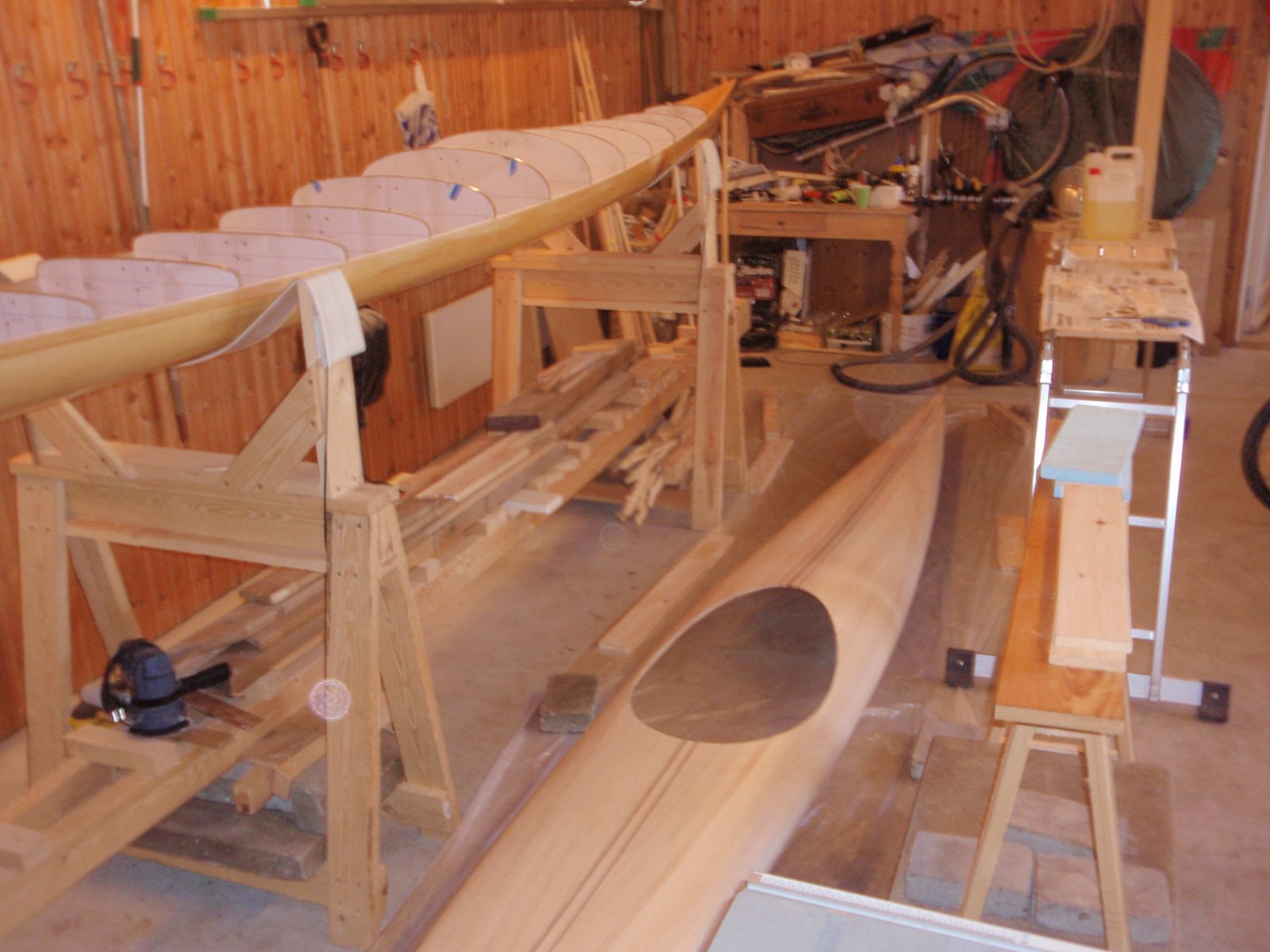

Ready for priming the deck with epoxy.

Done, - but not without a struggle... The roller I used was the same roller I used for the last layer of epoxy on the hull. When done with the hull I had placed the roller in acetone. When rolling epoxy on the deck the roller started to come apart and leaving pieces of "wool" in the epoxy. Fortunately I had a new roller ready but that left almost as much "wool" in the epoxy. What a mess! Its a good thing that its only a prining and I can sand it all down....

04-08-11: Cockpit coaming

Back from our summer vacation in Italy and still have some days left. before starting at work. :-)
For the coaming I wanted to use some of my leftouver strips of hardwood. After steaming the strips for a period I shaped the strips over the cockpit template. After 3 breaking 3 strips I realize that the hardwood was not a good choice.

To test I then steamed some pine strips to check out if these could stand the treatment..

My setup for steaming strips:
